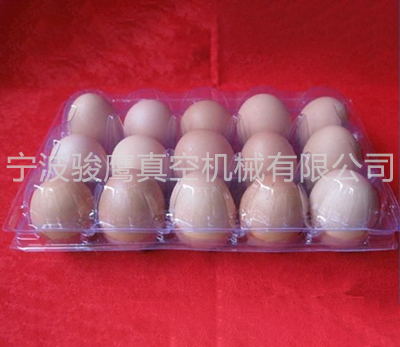

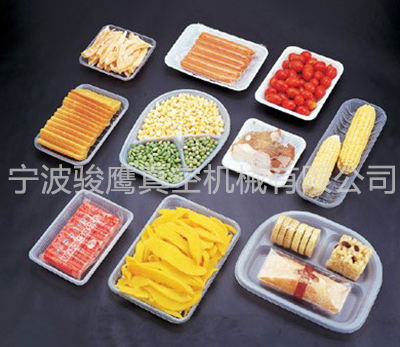

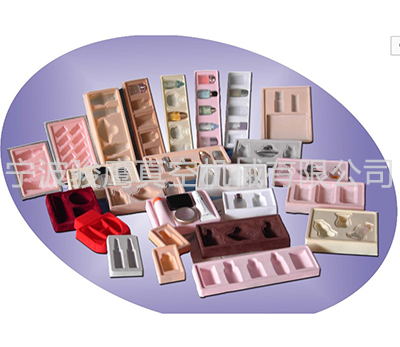

First, the application industry: This machine can be used to blister various types of film into different shapes of blister. Such as toys, hardware, food, electronics, medicine, transparent products to seal the product on the cardboard, forming a close package...
First, the application industry: This machine can be used to blister various types of film into different shapes of blister. Such as toys, hardware, food, electronics, medicine, transparent products to seal the product on the cardboard, forming a close package.
Second, the machine features: This machine can produce three-dimensional embossed pattern and other plastic flower board, cake box, automotive materials and sanitary equipment, etc. This machine has good performance, high production efficiency, independent temperature control, temperature average than ordinary machine province electronic watch 50%, equipped with a chiller, can adapt to different raw material processing technology.
Third, the material: polyester sheet (PET), high-strength polystyrene (PS), high-strength polystyrene resin sheet PVC and HIPS, PP, PEGT, etc.
Fourth, the machine features: linear bearing slicing, motor automatic mold adjustment, automatic constant temperature fine-tuning, frequency conversion automatic pull!
Fifth, the technical parameters of the machine Technical Data:
| MODEL | JY-71H | JY-76H |
| Material | THERMOPLASTIC MATERIAL SUCH AS PVC、HIPS、PS、PP、APET、PETG | |
| Forming Width | 460~680MM | 510~730MM |
| Forming Length | 660~1120MM | 660~1220MM |
| Forming Height | 190MM | 200MM |
| Vacuum Pump | 2.25KW 100M /Hr | 2.25KW 100M /Hr |
| Spray Gun | 8units | 8units |
| Chiller System | 3KW | 3.37KW |
| Temperature Control System | 54units | 60units |
| Average Power Consumption | 35KW | 40.27KW |
| Power Supply | 380V 50/60HZ | |
| Machinery Dimension(L×W×H) | 5900(L)×1300(W) ×2300(H)MM | 6900(L)×1400(W) ×2440(H)MM |
| Net Weight | 3200kg | 3500kg |
