Packing plastic forming machine (watering sheet)
Brand: Ningbo Jun Ying
Model: JY-1250L
Molding length: 2200 (mm) cutting material can be 3600mm, set any length and length!
Molding width: 1250 (mm)
Maximum forming depth: 100 (mm)
First, the main purpose:

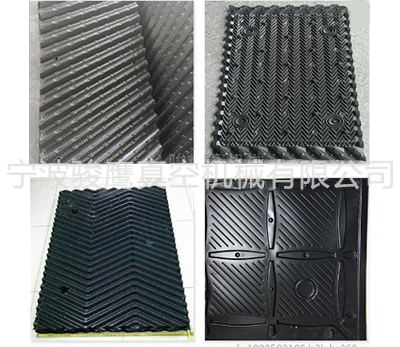

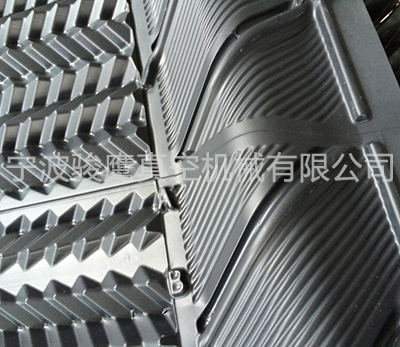

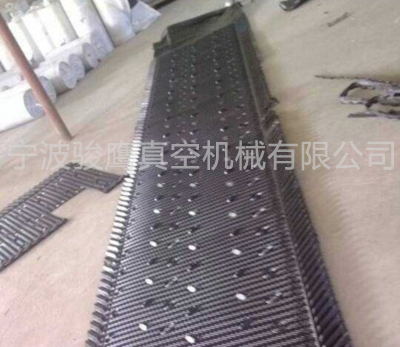

Applicable to large-scale specialized production of industrial cooling tower PVC filler sheets. High degree of automation, high production efficiency, good reliability and low failure rate
Second, the main features:
1. Control system: adopts microcomputer PLC control system, which can implement full-automatic control of the whole machine according to the process requirements; motor pull-tab, stepless adjustment of the length, speed and precision of the pull-tab by the inverter and touch screen;
2. Control part: using imported electrical appliances to make the whole machine run stably and reliably;
3. Heating system: adopts fully enclosed far-infrared ceramic heating brick heating system, six-stop switch, one-to-one control of heating bricks, effectively control molding temperature and save energy;
4. Mechanical part: special aluminum alloy track and rolling chain, beautiful appearance, no deformation of track, good cooling effect, small friction coefficient, no vibration.
5. Control mode: manual and automatic control, trial production and continuous production are all convenient and easy to operate.
6. Adopt automatic mold adjustment function to save sheet material.
| Model |
JY-50ML |
JY-1220L | JY-750L |
| Molding width | 20″～50″ | 750～1250 | 20″～32″ |
| Molding length | 30″～44″ | 800～2400 | 30″～60″ |
| Maximum forming height | 100mm | 100mm | 100mm |
| Sheet thickness | 0.25～1.4 mm | 0.25～1 mm | 0.25～1.2 mm |
| Pulling speed | 000～1000 mm/s Frequency converter adjustment range (0~50Hz) |
000～850 mm/s Frequency converter adjustment range (0~50Hz) |
000～1000 mm/s Frequency converter adjustment range (0~50Hz) |
| control method | PLC+ super single axis controller | PLC microcomputer control | PLC microcomputer control |
| Frequency converter | Japan "PANASONIC" | Japan "TOSHIBA" | Japan "TOSHIBA" |
| Operation method | touch screen | touch screen | touch screen |
| Single cycle | 8～50 s | 10～50 s | 8～50 s |
| Vacuum degree | -0.08 Mpa | -0.08 Mpa | -0.08 Mpa |
| System pressure | 0.4～0.8 Mpa | 0.4～0.8 Mpa | 0.4～0.8 Mpa |
| Upper heating system | 44kW(110×0.4kW) | 67.2kW(168×0.4kW) | 40.5kW(96×0.4kW) |
| Lower heating system | - | - | - |
| Hair dryer power | 1.5kW(0.75kW×2) | 3kW(0.75kW×4) | 3kW(0.75kW×4) |
| Vacuum pump power | 5.5kW Germany “RIETSCHILE” | 5.5kW Germany “RIETSCHILE” | 5.5kW Germany “RIETSCHILE” |
| Vacuum pump displacement | 160 m3/h | 200 m3/h | 160 m3/h |
| Servo motor power | 0.75kW | 0.75kw | 0.75kW |
| Roller motor power | 0.75kW | 1.1kW | 0.75kW |
| Cold water spray*** | 10 Taiwan TAIWAN “7-UP”- |
12 Taiwan TAIWAN “7-UP” |
10 Taiwan 灣TAIWAN “7-UP” |
| Feed motor power | 0.14kw- | 0.14kW | 0.14kW |
| Pull motor power | 1.5kw | 1.5kW | 1.5kW |
| Chiller power | 3.375kW Hong Kong “NITSU” | 3.375kW Hong Kong “NITSU” | 3.375kW Hong Kong “NITSU” |
| Air consumption | 2 .5 m3/min | 2 m3/min | 2 m3/min |
| Working power | Max 62 kW | Max 82 kW | Max 57 kW |
| Electric power supply | 380VAC/50Hz/3 | 380VAC/50Hz/3 | 380VAC/50Hz/3 |
| Mechanical size (mm) | 10000×1800×2500 | 13000×1800×2500 | 10000×1800×2500 |
| Mechanical weight | 3200 kg | 3900 kg | 3500kg |
