"Aircraft carrier" in the Junying blister machine

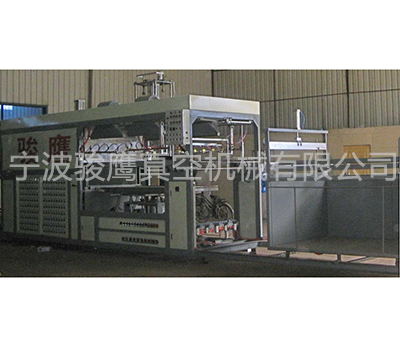

Automatic high speed vacuum forming machine (JY-1200L) electromechanical type
"Aircraft carrier" in the Junying blister machine
Automatic high speed vacuum forming machine (JY-1200L) electromechanical type
|
Main specifications and parameters
|
Applicable width | 950~1200mm adjustable |
| Molding length | 1350~2200mm adjustable | |
| Forming height | 200mm (highest) | |
| Production speed | 220~480 times/hour (depending on product shape and sheet thickness) | |
| Electric furnace power | Generally 22~46KW maximum power 82.8KW | |
| Temperature control device | Debug solid state regulator block | |
| Motor power | 2.25KW | |
| Pull motor | 3.7KW | |
| Vacuum pump | 5KW 200 cubic meters / hour | |
| Chiller | 5KW | |
| Total power | 90KW | |
| power supply | Three-phase 380V 50/60HZ | |
| Matching air compressor | 15KW 20HP (customer-supplied) | |
| Mechanical Dimensions | 9200(L)?2100(W) ?3166(H)mm | |
| weight | 4500kg |
主要配置說(shuō)明
Spray gun LIQUID ST-6 18 Japanese and Japanese joint ventures
| Name | Brand / Model | Origin | Remarks |
| Vacuum pump | BUSCH RC200 | Germany | Exhaust volume 200 m3 / h |
| Limit switch | Schneider | France | |
| Spray gun | LIQUID ST-6 18 | Japanese and Japanese joint ventures | Two gas and one water |
| The electromagnetic valve | NORGREN Novo | United Kingdom | |
| Time Relay | OMRON Omron (digital display) | Japan | |
| Intermediate relay | OMRON Omron | Japan | |
| Air combination | SQW Caliber 5 points | Japanese joint venture | Automatic drainage |
| cylinder | ZHICHENG | China-Germany joint venture | |
| Chiller | Hualing | Sino-Hong Kong joint venture | |
| Heating brick | 650W 153 pieces | Guangdong (joint venture) | |
| Pressure regulation | AIKS or Megger | Hong Kong | |
| Pull motor | Lu Shen | Taiwan | |
| Frequency converter | Mitsubishi | Japan | |
| Girder guide | Channel track | Taiwan | |
| Die plate | The size is 960*1060*1200?2200mm (combined die plate) | Note: The regular scale is 960mm (must be equipped) | Template two (assembly) |
Description of main features:
1. a second slow vacuum;
2. One time / two times the upper mold function;
3. Vibration demoulding;
4. One control and one temperature control device;
5. Automatic upper motor tuning system;
6. Heating furnace asbestos tile insulation system;
7. The heating system is a solid-state pressure regulating block, which is more stable;
8. Motor pull tab;
9. Automatic mold plate telescopic system
